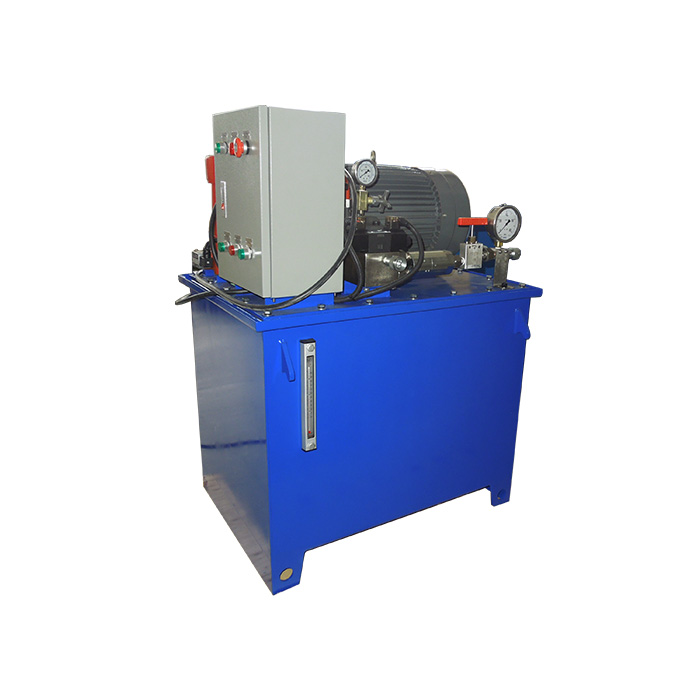

Electric pump hydrostatic intensifiers power unit MPT680

    1.Test medium: hydraulic oil YA-N46;

    2.Test pressure: maximum low pressure input 20MPa，maximum high pressure output 68MPa;

    3.Power supply: 15kw,AC380/50HZ;

    4.Dimensions and weight: L700*W700*H1360(mm)，130kg (without hydraulic oil)

    5.More:

     output flow: low pressure 35L/min, high pressure 5L/min;

     reservoir: 300L.

  • Parameters

    1.Test medium: hydraulic oil YA-N46;

    2.Test pressure: maximum low pressure input 20MPa，maximum high pressure output 68MPa;

    3.Power supply: 15kw,AC380/50HZ;

    4.Dimensions and weight: L700*W700*H1360(mm)，130kg (without hydraulic oil)

    5.More:

     output flow: low pressure 35L/min, high pressure 5L/min;

     reservoir: 300L.

▍Applications

Electric pump hydrostatic intensifiers power unit MPT680

1. Suitable for pressure test of double-acting oil cylinder.

2. Also fit for hydrostatic test for other components.


▍Main feature

High pressure,and mass flow when low pressure charging.


▍Parameter

1.Test medium: hydraulic oil YA-N46;

2.Test pressure: maximum low pressure input 20MPa，maximum high pressure output 68MPa;

3.Power supply: 15kw,AC380/50HZ;

4.Dimensions and weight: L700*W700*H1360(mm)，130kg (without hydraulic oil)

5.More:

 output flow: low pressure 35L/min, high pressure 5L/min;

 reservoir: 300L.
