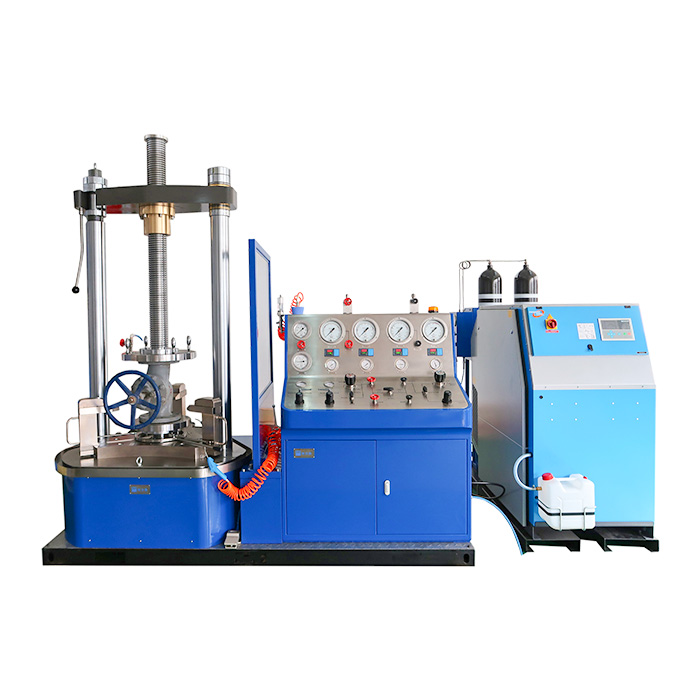

Vertical universal test bench TPU-3100-LU-SHAC
1.Test medium:water, air;
2.Test pressure:water pressure 350 bar, gas pressure 320 bar;
3.Test range:DN15-400;
4.Clamping force:30T;
5.Power supply:1.4Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console+clamping console+P.T. shield: 2580*1138*2330~3330（mm）,2482kg;
air compressor+cylinder;2055*840*2000（mm）,1163kg.
- Parameters
1.Test medium:water, air;
2.Test pressure:water pressure 350 bar, gas pressure 320 bar;
3.Test range:DN15-400;
4.Clamping force:30T;
5.Power supply:1.4Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console+clamping console+P.T. shield: 2580*1138*2330~3330（mm）,2482kg;
air compressor+cylinder;2055*840*2000（mm）,1163kg.
▍Applications
Vertical universal test bench TPU-3100-LU-SHAC
1.Mainly used for off-line pressure test and seat tightness test of safety valve;
2.Also for strength and seat tightness test for common valves such as Butterfly valve, globe valve, diaphragm valve, gate valve, check valve;
3.Also for pressure test of external test interface, hose, pressure vessel and so on.
▍Main feature
1.Clamping console has horizontal three-jaw clamping and vertical gantry clamping functions. A wide range of valve types can be tested;
2.The upper beam can be rotated more than 90°, so that the clamping console is completely open and convenient for valve lifting, clamping and other operations;
3.Hydraulic clamping, with safety self-locking function;
4.Imported 330 bar mute high pressure air compressor from Germany provide test air source.
▍Parameter
1.Test medium:water, air;
2.Test pressure:water pressure 350 bar, gas pressure 320 bar;
3.Test range:DN15-400;
4.Clamping force:30T;
5.Power supply:1.4Nm3/Min@6.9 bar;
6.Dimensions and weight:
control console+clamping console+P.T. shield: 2580*1138*2330~3330（mm）,2482kg;
air compressor+cylinder;2055*840*2000（mm）,1163kg.
